The best dovetail jig for drawers is the PORTER-CABLE 4216: three interchangeable templates cut half-blind, through and box joints in 12 inch stock, and the bit depth gauges get a first-tighter drawer box without guesswork. Budget buyers should start with the General Tools 861.
Most dovetail jig roundups on the internet answer this question for cabinetmakers in general. Drawers are a narrower job, and the specifications that matter change when your only goal is joining four boards into a box that has to slide in and out for twenty years. A jig that tops the list for kitchen cabinet doors often has the wrong half-blind depth or a footprint longer than your bench.
So this roundup is organised around drawer work specifically. Every pick below is judged on three things: can it cut a clean half-blind dovetail in drawer stock thickness, is its capacity wider than your drawer sides, and does it hold the board square while the router passes. We pulled the manufacturer specs, cross-checked them against owner reports across woodworking forums, and weighted first-joint accuracy and repeatability more heavily than any single measurement. Our kitchen drawer hardware guide covers the slides and box dimensions that pair with the joints you will cut here.
Table of Contents
Top 3 Dovetail Jigs for Drawers in 2026
These three cover the majority of drawer builders. The 4216 is the all-rounder, the 861 is the cheapest honest way in, and the Keller template is the one that never complains about stock thickness.
PORTER-CABLE 4216 Dovetail Jig
- Three templates for half-blind through and box joints
- 12 inch aluminum base
- Router bit depth gauges included
General Tools 861 Dovetail Jig
- Includes 14-degree dovetail bit
- One-piece aluminum layout
- Makes half-blind through and box joints
Keller 135-1500 Journeyman
- 1/8 to 3/4 inch thickness range
- Unlimited width and length
- Back-to-back cutting
The PORTER-CABLE 4216 leads because a drawer box needs three different joints from the same bench: half-blind where the sides meet the front and back, through dovetails if you want a show face, and box joints for the drawer bottom. Only a multi-template kit covers all three without a second purchase.
8 Best Dovetail Jigs for Drawers (October 2026)
| Product | Specs | Action |
|---|---|---|
| PORTER-CABLE 4216 Dovetail Jig |
|
Check Latest Price |
| General Tools 861 Dovetail Jig |
|
Check Latest Price |
| Keller 135-1500 Journeyman |
|
Check Latest Price |
 TREND CDJ600 Half-Blind Dovetail Jig |
|
Check Latest Price |
 Leigh RTJ400 Router Table Dovetail Jig |
|
Check Latest Price |
 Leigh D4R Pro Dovetail Jig |
|
Check Latest Price |
 Peachtree Dovetail Jig Master Deluxe |
|
Check Latest Price |
 Woodstock D2796 Dovetail Jig |
|
Check Latest Price |
Two columns in that table decide most drawer purchases. Capacity tells you whether the jig is wider than your drawer sides, and joint type tells you whether it can do the half-blind work that hides between the front and back.
1. Porter-Cable 4216 Dovetail Jig – Best Overall for Drawer Boxes

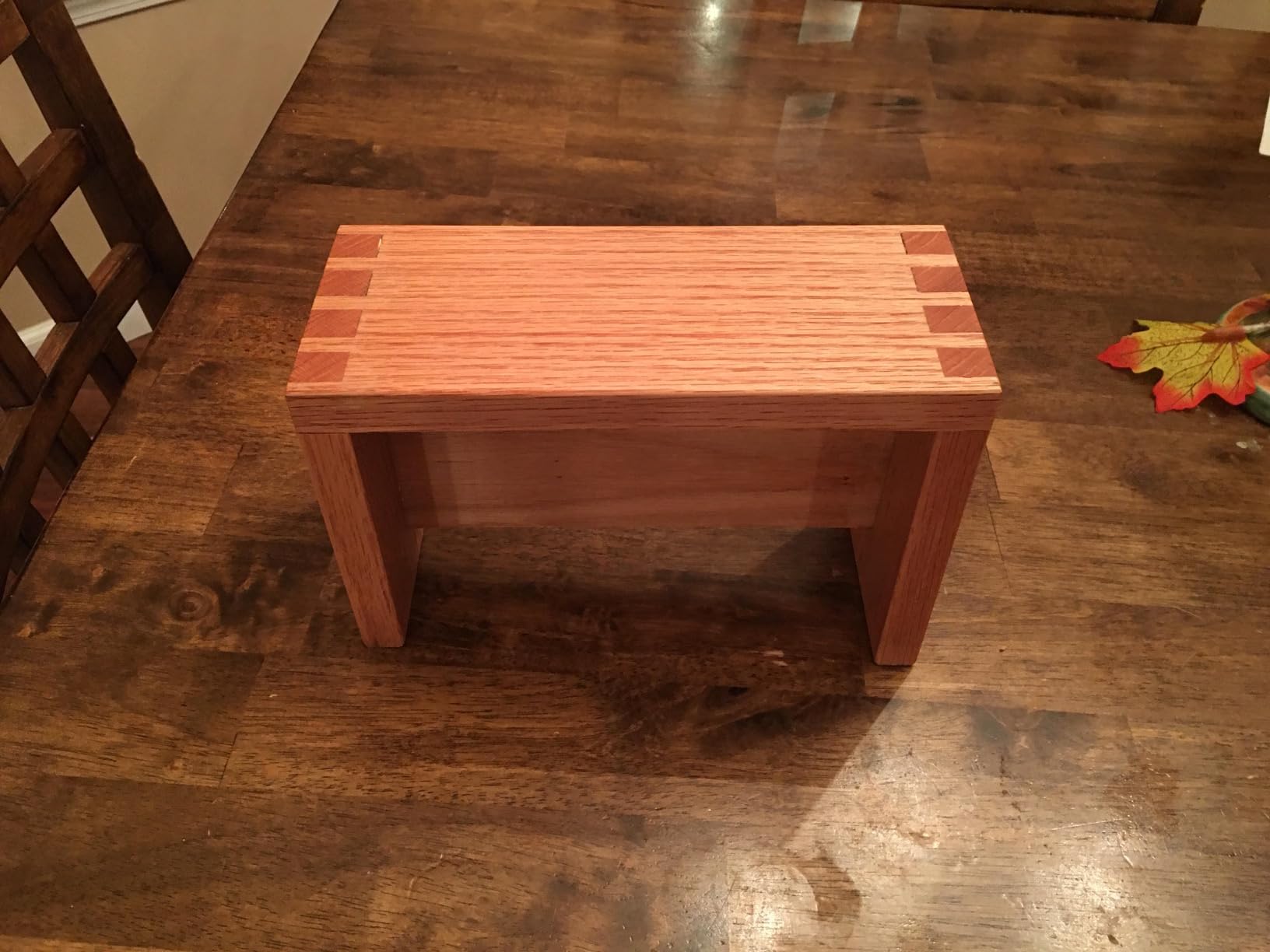

PORTER-CABLE Dovetail Jig with Mini Template Kit, Woodworking (4216)
12 inch aluminum base
Three templates: 4211 4213 4215
Bits and guides included
26.7 lbs class build
Pros
- Cuts half-blind rabbeted half-blind through and box joints
- Bit depth gauges speed up first-joint setup
- Aluminum base stays rigid with the router load
- One kit covers every joint a drawer needs
Cons
- Heavy and bulky for a benchtop jig
- Router often needs to be bought separately
The 4216 has been the default answer in woodworking forums for years, and the reason is drawer-specific rather than general. It ships with three templates: 4211 for half-blind, rabbeted half-blind and sliding dovetails, 4213 for through dovetails and box joints, and 4215 for miniature through and half-blind dovetails plus miniature box joints.
For a single chest of drawers, that spread matters more than any spec on the list. You cut half-blind joints where the sides meet the front and back, drop to a miniature through template for small drawer boxes, and use 4213 for the drawer bottom. No second jig leaves the bench.
The template alignment lines and the router bit depth gauges are the features that saved me the most time on my first build. Instead of measuring bit protrusion with a ruler and re-checking after every adjustment, the gauges let you set the depth against a reference surface in seconds. Out of the box, the rating distribution sits at 82 percent five-star across more than 2,600 reviews, which is a strong signal that the factory setup is close to where it should be.
The kit includes a 12 inch jig base, three templates, four router bits, four template guides, two lock nuts and a wrench. That matters because the most common complaint about budget jigs is arriving with a template and no bit. The warranty runs 90 days money back, one year free service and three years against manufacturer defects.
Be honest about the footprint. The 4216 weighs 12.13 kg and measures 22.25 inches long by 11.75 inches wide. That is a permanent bench fixture, not a portable tool. If your shop is a single-car garage with one workbench and a lot of shared surface, the storage footprint is a real cost even though the joint quality is not.

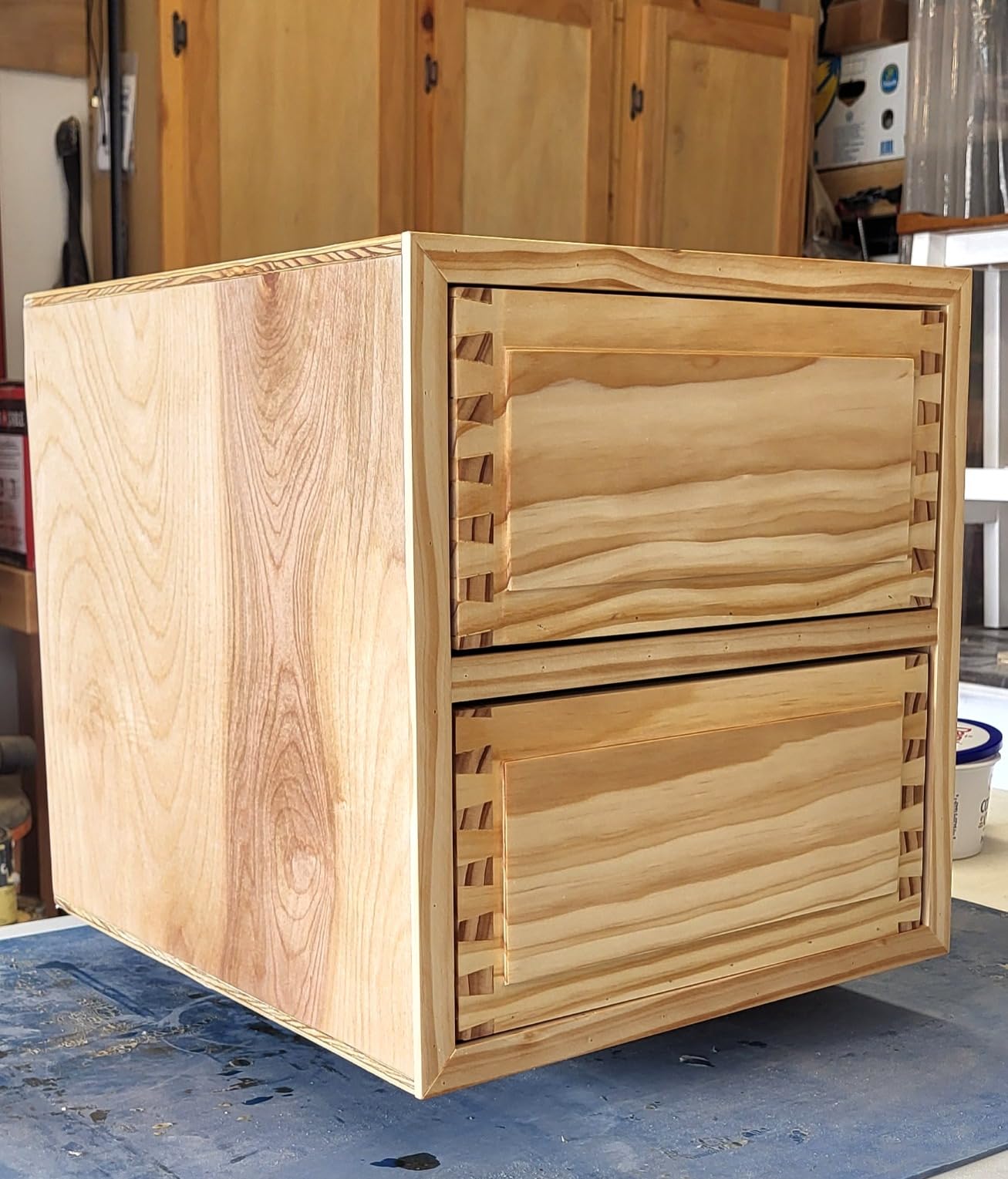

What you get for a drawer box
The 4211 template is the one you will use most. It handles half-blind joints between the drawer front and the two sides, and between the two sides and the back, which is the bulk of the joinery in a four-sided drawer box.
The 4213 template handles through dovetails on a show-face drawer side, plus box joints for the bottom panel if you prefer a captured bottom to a screw-in bottom. The 4215 miniature template covers small jewelry-casket style drawers where full-size pins would swallow the whole face.
Where it disappoints
The bulk is the complaint that comes up most often in owner reports. At 12.13 kg the jig does not move when you want it to, and if your bench doubles as a glue-up surface you will be relocating it constantly.
The router is a separate purchase in many configurations, and for a jig aimed at beginners that is the hidden cost that catches people out. Budget for a 1/2-inch collet handheld router with at least 1.5 horsepower before you start, and you will not be disappointed.
2. General Tools 861 Dovetail Jig – Best Entry-Level Jig

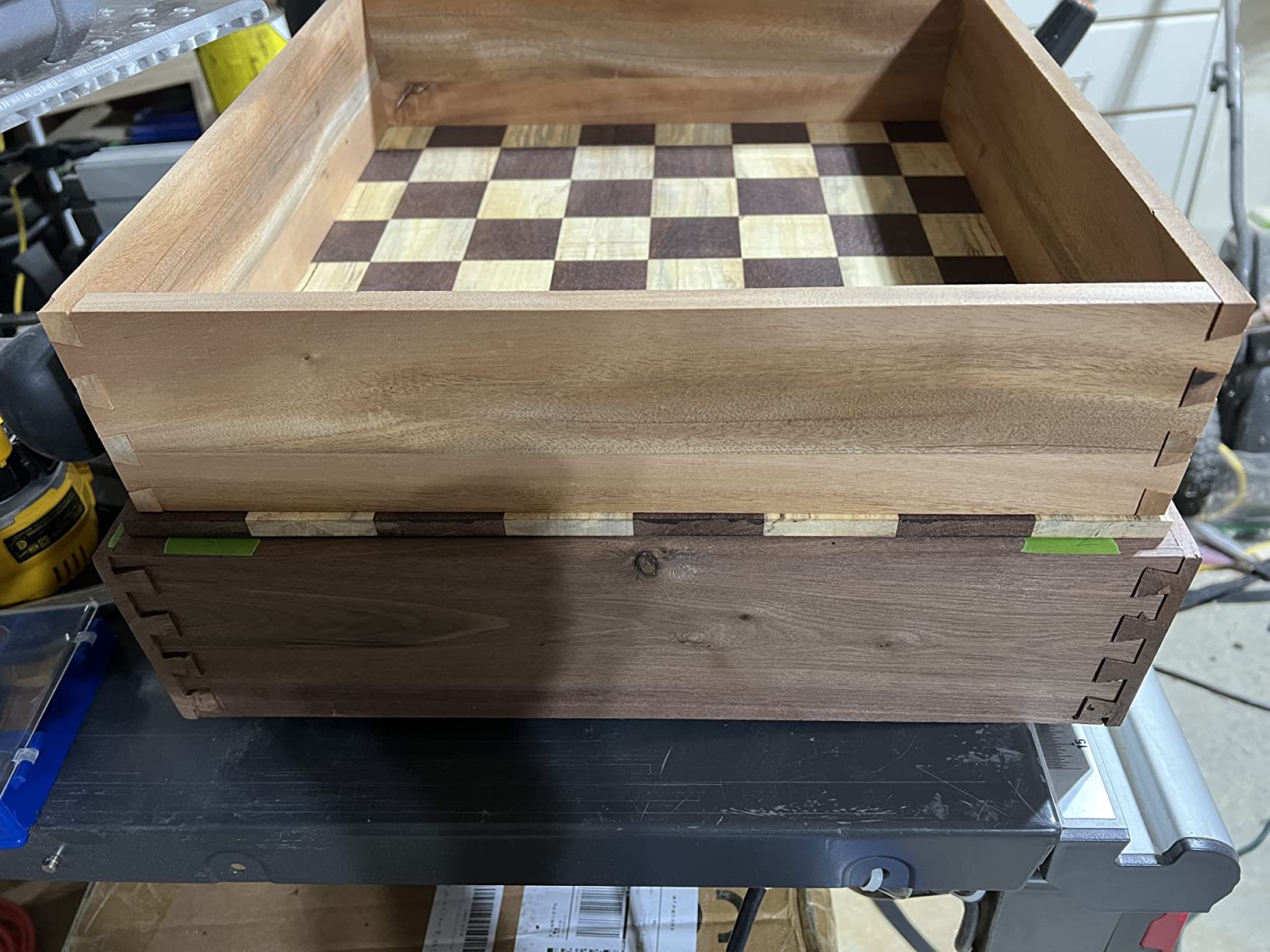

General Tools Woodworking Dovetail Jig – 12″ Template Kit for Furniture & Wood Cabinet Making,Gold
12 inch aluminum body
14-degree 1/2 inch bit included
Adjustable micro-jig fit control
2.94 lb portable weight
Pros
- Router bit included in the kit
- Lowest cost way into dovetail joinery
- One-piece aluminum layout matches both joint ends
- Adjustable fit for loose or tight joints
Cons
- Included bit dulls fast in hardwood
- Plastic pin guides wear first
- Small work area needs re-aligning
The 861 is the jig most people buy first, and for a specific reason: the 14-degree half-inch dovetail router bit is in the box. Every entry-level jig on the market ships with a bare aluminum template, and the 861 is the one that removes the most common first-project blocker.
The one-piece aluminum layout is the second reason. Because the template is a single milled piece rather than adjustable fingers, both ends of the joint are cut to the same geometry in one pass. For drawer work that is exactly what you want: a half-blind tail on the side that matches the pin spacing on the front.
The micro-jig interface gives you control knobs for adjusting between a loose joint for a dry fit and a tight joint for glue-up. In practice I set the fit slightly tight, make one test cut, and only then start the real drawer box.
The rating distribution here is worth reading carefully: 61 percent five-star, 16 percent four-star, 8 percent one-star. That eight percent cluster almost always mentions the same thing, the supplied bit. It dulls quickly in hardwood and one owner reported a tine breaking off. Nearly every regular builder replaces it within the first drawer box.
The plastic pin guides and the sliding plastic insert are the components that wear first. Some owners report the insert sitting slightly proud of the aluminum body after extended use, which shows up as a slightly wider gap on one side of the joint. It is a small tolerance problem, not a failure.
What you get for a drawer box

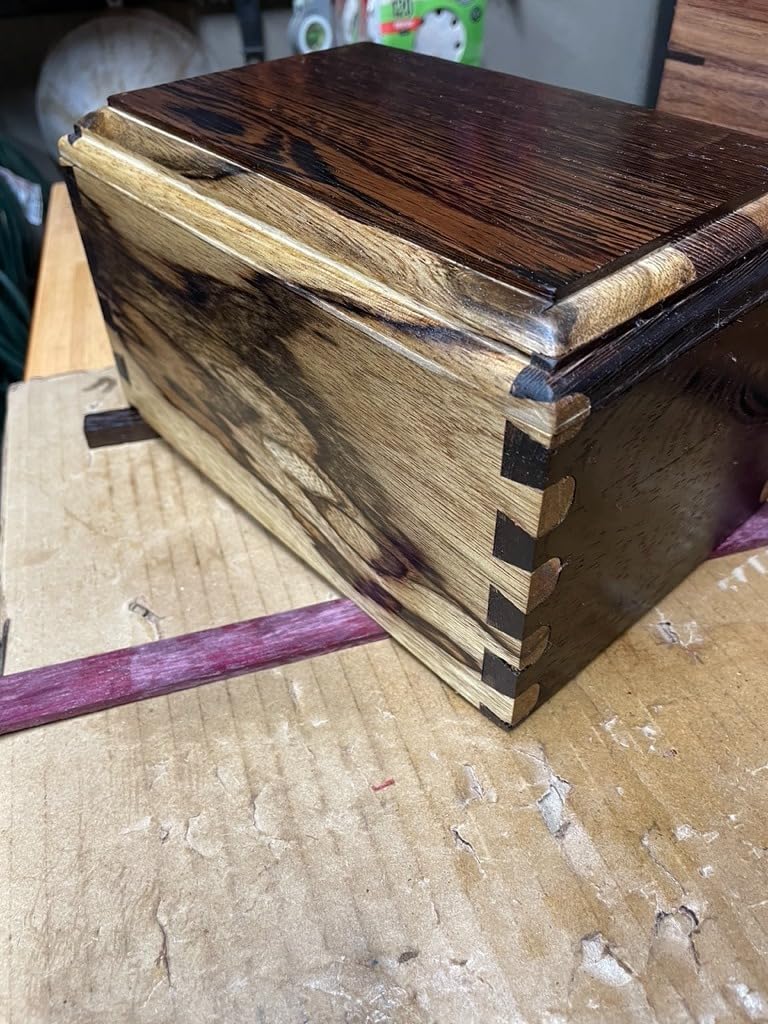

The 861 cuts half-blind dovetails, through dovetails and box joints. For a basic four-sided drawer box in half-inch plywood, that is every joint type you need. A full 14-degree half-inch pin is a good match for drawer stock because it gives a wide bearing surface for glue.
The integrated clamping design accommodates any board width within the 12 inch template, which means you are not hunting for board widths that happen to match a fixed finger spacing. That single feature separates it from most of its price bracket.
Where it disappoints
The work area is small, so on a wide carcass project you will be repositioning the same joint multiple times, and each repositioning is a chance to introduce a small error. Plan drawer boxes in the width of a comfortable work session rather than trying to rip a whole bank of kitchen drawers in one afternoon.
Two smaller things: box joint instructions call for a quarter-inch shim that is not in the kit, and the manual itself confuses a lot of first-time users. Search for the setup video before your first cut. Also note this listing runs the 861 in gold finish, which is cosmetic only.
3. Keller 135-1500 Journeyman Dovetail Jig – Best Value for Any Thickness

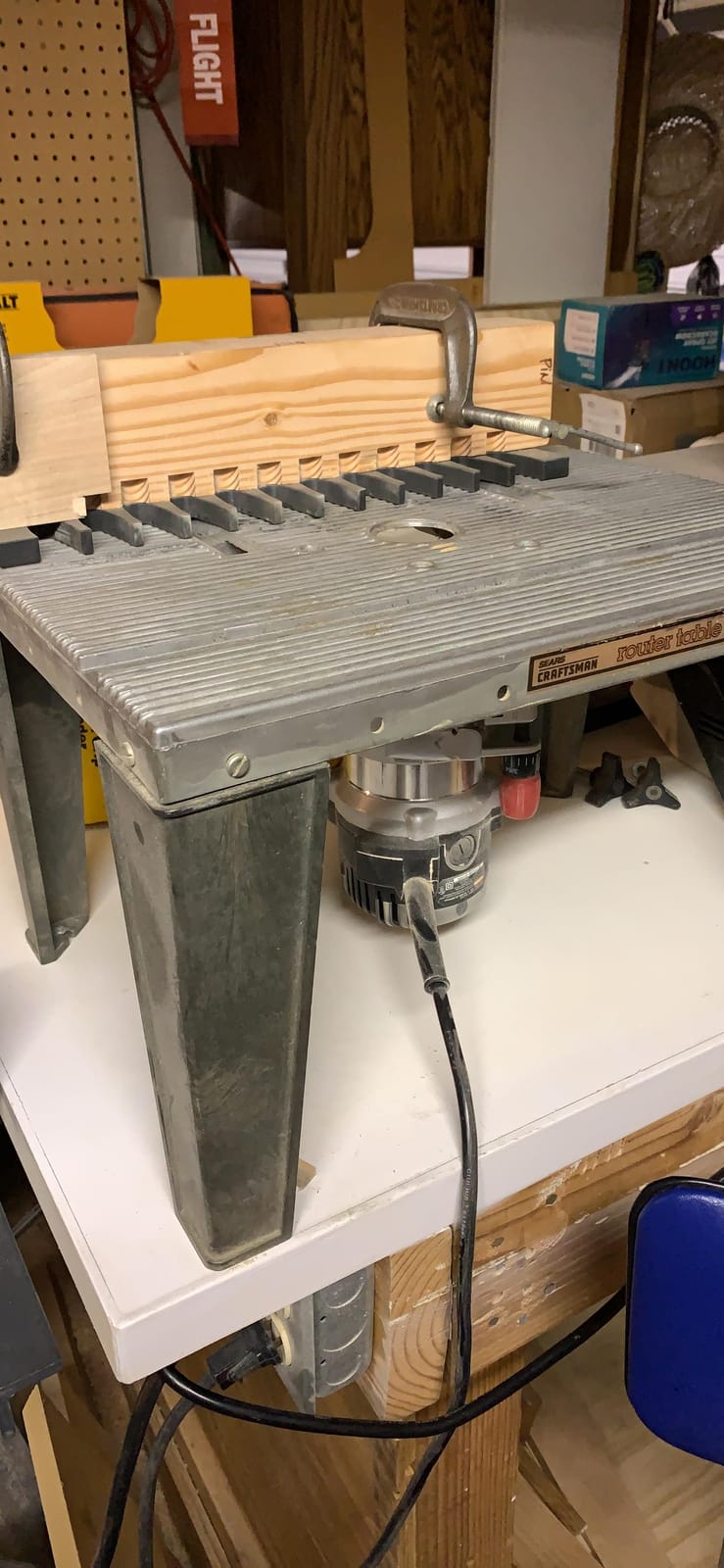

Keller Dovetail System 135-1500 Journeyman DoveTail Jig Template
15 inch precision-milled template
1/8 to 3/4 inch stock thickness
Unlimited width and length
1.7 lb portable
Pros
- Widest thickness range in this group
- Cuts unlimited widths and lengths without reset
- Back-to-back method avoids test cuts and waste
- Light enough to move between machines
Cons
- Template only
- so router and bushing are separate
- Wood template can wear with heavy daily use
The Keller Journeyman answers a question that the other jigs here cannot: what happens when your drawer stock is not 1/2 inch. Its 15 inch precision-milled template accepts wood from 1/8 inch all the way to 3/4 inch thick, plus unlimited widths and lengths, and it does so without a reset between joints.
That range is not a novelty for drawer builders. Kitchen cabinet drawers are often 1/2 inch ply sides, but an antique dresser refresh might mean 5/8 inch or 3/4 inch solid stock, and a jewelry insert might be 1/4 inch. A jig limited to a narrow thickness window forces you to change templates or change jigs.
The back-to-back cutting method is what makes it efficient. Rather than cutting pins on one board and then flipping the same board for tails, you cut two boards back to back in one pass. Owners highlight this as the reason the template wastes no wood, which matters when you are cutting sixteen identical drawer sides.
The rating distribution runs 76 percent five-star and 17 percent four-star across 234 reviews, which puts it second only to the 4216 for consistency of owner satisfaction in this group. Forum consensus also repeatedly describes Keller as the pick for production runs of identical joints, and that is exactly what a kitchen cabinet run of drawers is.
At 1.7 pounds the whole thing is genuinely portable. If you build drawer boxes away from the router table, or work in a shop where the router lives in a different corner from the bench, carrying a two-pound template is not a chore. It is a plain template with no base, no clamps and no bench mount.
What you get for a drawer box

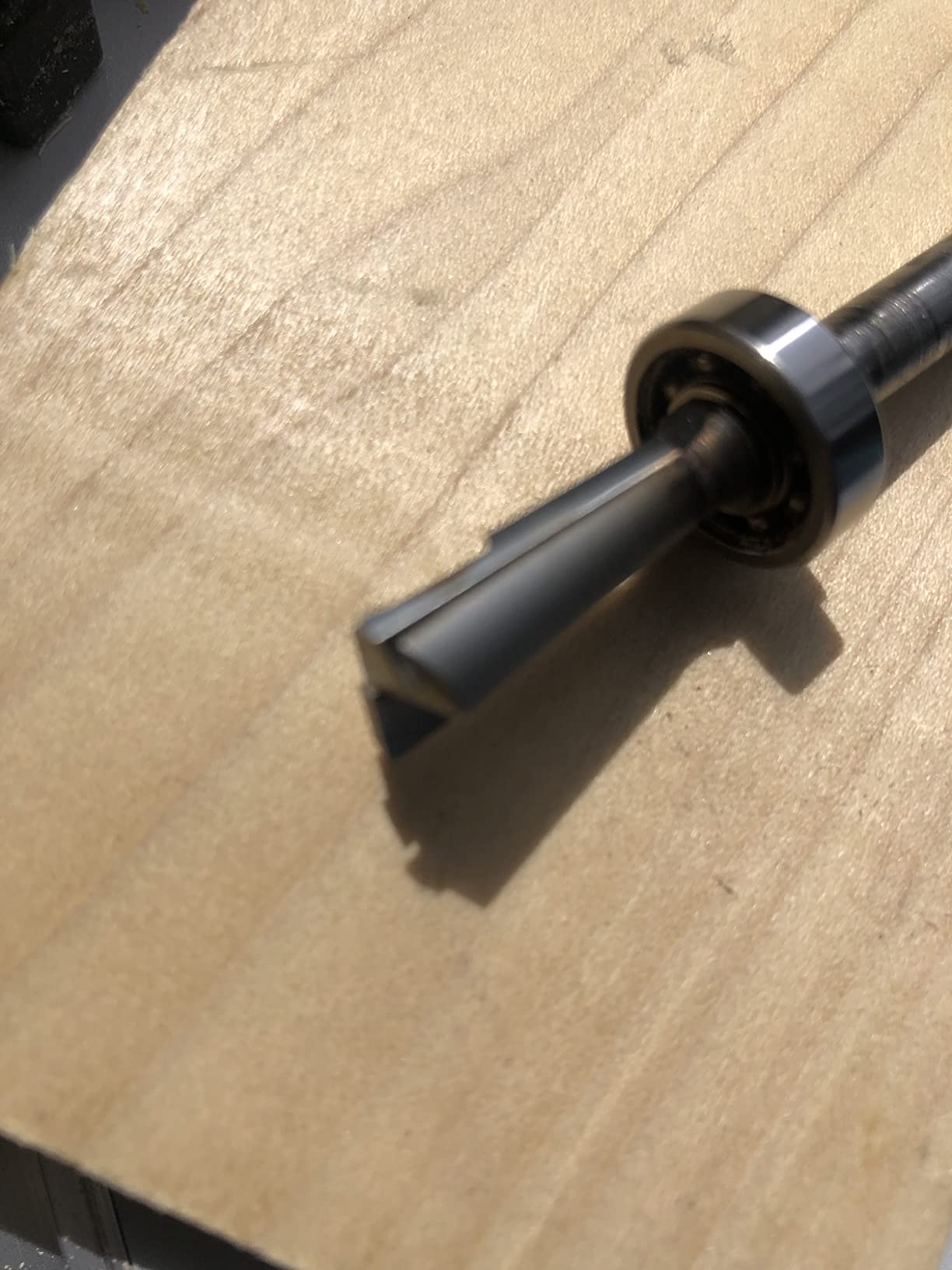

Because it is a template rather than a jig, you clamp it to your router table or workbench yourself, or use it freehand with a handheld router in a stable cradle. The unlimited width claim means your drawer sides can be any length, including a wide dresser drawer that would overflow a 12 inch template.
The thickness range is the real drawer advantage. You can cut a thin 1/4 inch small-box drawer and a 3/4 inch solid hardwood chest drawer with the same template and only a bit height change.
Where it disappoints
Being template-only means you own the whole setup chain: router, bit, guide bushing and a clamp or mount. That is a real barrier for a first-time jig owner who does not already have a router table, and it is why this is not the top pick despite the strong rating.
The wood template material is also the trade-off. It is easy to shape and cheap to replace, but under heavy daily use the reference edges wear, and a worn template changes the pin geometry across the board. Buy it as a shop tool for occasional or batched work rather than the one jig you use every day for years.
4. Trend CDJ600 Half-Blind Dovetail Jig – Best for 24 Inch Material
Trend CDJ600 24-Inch Half-blind Dovetail Jig
24 inch 600 mm capacity
Half-blind 1/2 inch dovetails
Alloy steel body
Bit and guide bushing included
Pros
- Cuts 1/2 inch half-blind dovetails in one pass
- Handles 24 inch wide workpieces
- Steel body resists flex under router load
- Dovetail bit and guide bushing included
Cons
- Half-blind only
- Through and box joints need another jig
- 26.7 lb weight makes it a fixed fixture
The CDJ600 is the one to look at when a 12 inch template is simply too small. A dresser drawer front can easily exceed 12 inches of show-face width, and a wide chest of drawers is not rare. This jig handles work pieces up to 24 inches wide in a single pass.
It cuts half-blind dovetails with a half-inch pin spacing, which is the standard for drawer construction. That means the joint between a drawer front and its side comes out with a clean rectangular half-blind tail rather than a through tail showing on the show face.
The alloy steel body is the differentiator against the aluminum competition. Steel at 26.7 pounds does not flex, and a rigid base means the router cut stays true as the bit loads up. For thick solid hardwood drawer stock, that rigidity shows up as cleaner walls on the tails.
The kit includes a dovetail bit and a guide bushing, so there is no separate bit purchase. The warranty runs one year against material and workmanship defects.
What you get for a drawer box
Front-and-back joints on a wide dresser drawer are where this jig earns its place. If you build a chest where every drawer front is 15 to 20 inches wide, a 12 inch jig means either a false joint at the end or a lot of clamping repositioning.
The half-inch pin spacing gives a wide glue surface. On thick stock that matters more than the joint decoration, because the drawer has to carry the weight of whatever is inside it without the corners creeping.
Where it disappoints
This is a half-blind jig and only a half-blind jig. If your drawer design calls for through dovetails on a show face, or if you want box joints for the drawer bottom, you need a second jig on the bench. That is the trade you make for the 24 inch capacity.
At 26.7 pounds it is the heaviest jig in this group and it stays where you put it. The 12 percent three-star reviews cluster around setup friction and a learning curve for the template adjustments rather than around joint quality itself.
5. Leigh RTJ400 Router Table Dovetail Jig – Best for Router Table Owners
Rockler Leigh RTJ400 16″ Router Table Dovetail Jig – Precision Router Jig for Through Dovetails – Box Joints and Finger Joints – Advanced Woodworking Router Workstation Joinery System
16 inch capacity
Six joint types from one template
Aircraft-grade aluminum template
Elliptical guide bushing
Pros
- Through half-blind half-pitch angled dovetails and box joints
- Sliding design keeps hands off the bit and improves sightlines
- Elliptical bushing gives repeatable fit without readjustment
- Complete kit with cutters bushing and gauges
Cons
- Needs a router table with counterbore insert ring
- Instructions and videos need study first
- Tear-out on hardwood-faced ply
The RTJ400 is a different animal from the rest of this list because it does not use a handheld router at all. The jig slides across your router table surface, so the work moves past a stationary bit instead of the router moving across a bench-mounted template.
That single design decision matters enormously for batch drawer work. The workpiece stays clamped to the jig, the jig stays registered to the table fence, and every joint in a stack of sixteen identical sides comes out the same without you lifting a router and re-establishing its position. It also keeps both hands away from the bit, which is a genuine safety and fatigue argument.
One template handles through dovetails, half-blind, half-pitch and angled dovetails, end-to-end splices and box joints. The elliptical guide bushing is what makes the fit repeatable: it compensates for router runout without you adjusting anything between cuts.
Owners commonly describe it as the most accurate router-table jig they have used, and the standard advice is to practice on scrap cut to the exact size of your drawer stock before touching the real project.
What you get for a drawer box
The half-blind setting on this jig is the drawer one. With the router table you are cutting at a stable height, so the half-blind depth is set once by a depth gauge and then holds for every board in the batch. That repeatability is what makes batch production sensible.
The angled and half-pitch dovetail options are less drawer-specific but more furniture-specific. If you later build a box with a mitred drawer front, this jig handles joints that a plain half-blind jig cannot.
Where it disappoints
The prerequisite is the catch. It needs a router table fitted with a counterbore insert ring for the Leigh e-Bush, and that is the single most reported hurdle in owner reviews. Check your table before buying, because an incompatible insert means the jig does not work at all.
There is also a real tear-out issue on hardwood-faced plywood with core voids. Run a backing board and always test on the same material you will cut. And the first setup session is not quick, so allow time to study the instructions and the setup videos before you start a batch.
6. Leigh D4R Pro Dovetail Jig – Best for Hand-Cut Style Pins and Tails

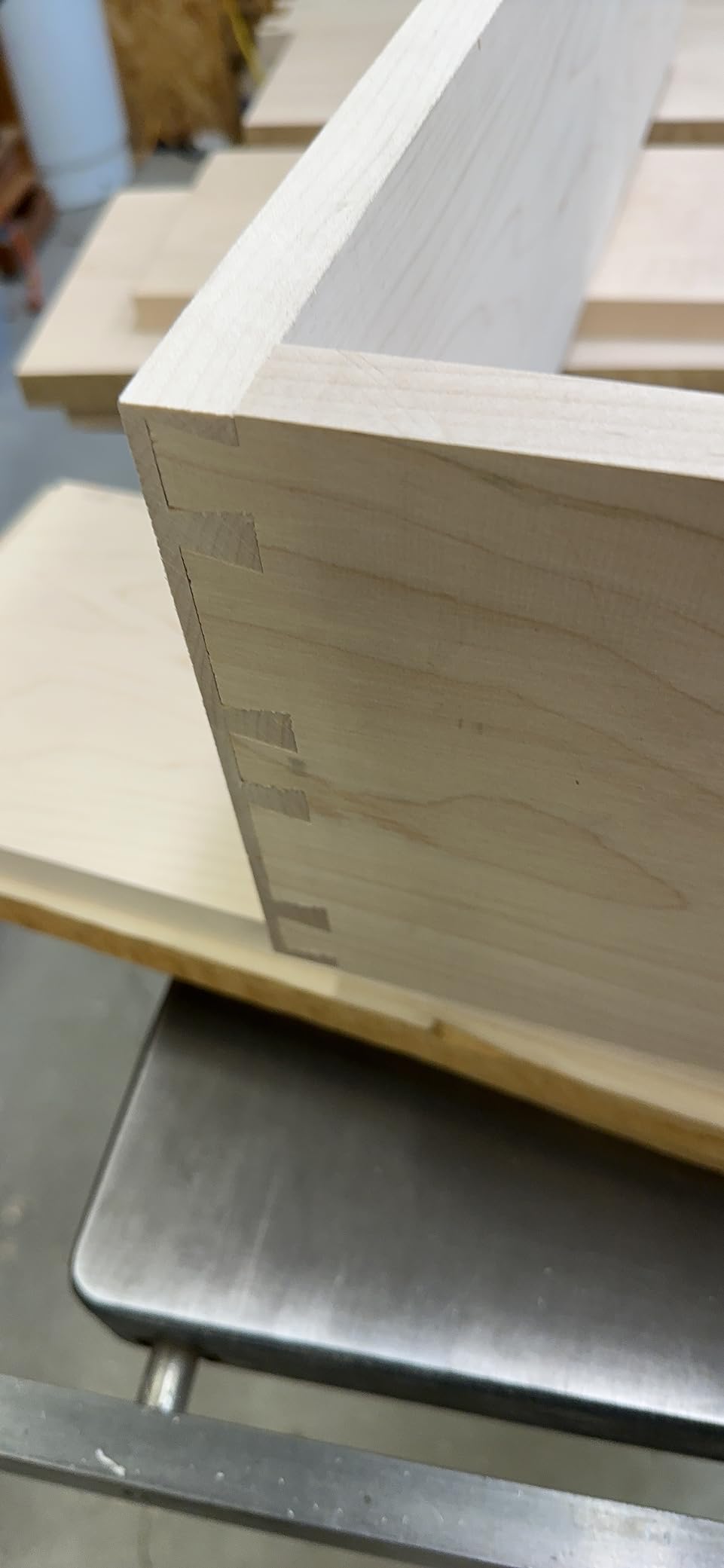

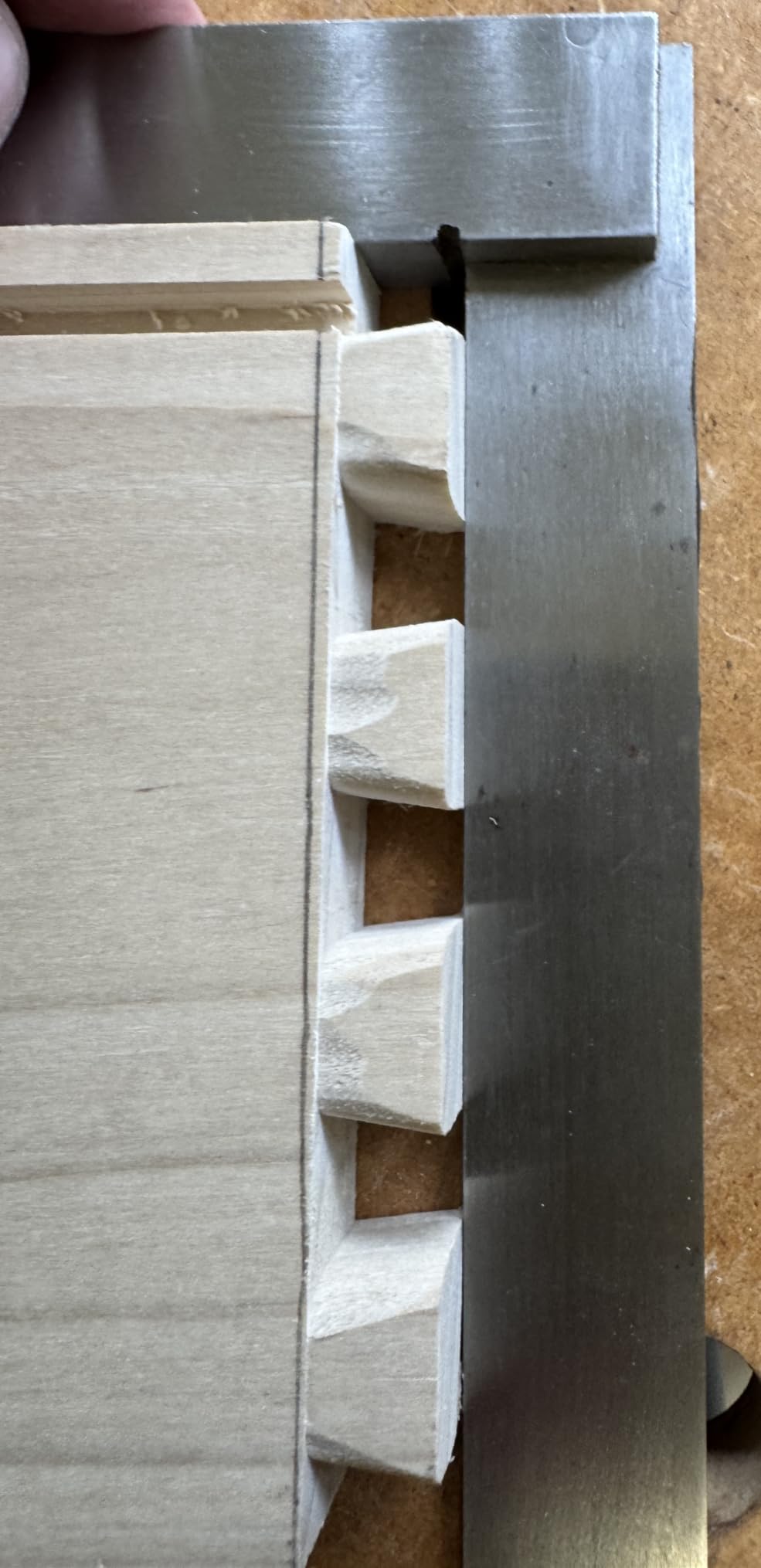

Leigh D4R-PRO Dovetail Jig
One-piece aluminum extrusion base
24 inch board capacity
Pins up to 1-1/4 inch thick
Three carbide router bits included
Pros
- Rigid one-piece base resists twisting
- 24 inch capacity with wide flat pins
- Tail spacing matches hand-cut traditional look
- Three carbide router bits included
Cons
- Lowest rating in this group at 4.1
- 22.1 lb weight makes it a fixed shop fixture
- Router and setup add extra cost
The D4R Pro is a hand-cut imitation jig. Its whole argument is that you get thin, flat, widely spaced pins and tails that read as hand-cut work rather than the stubby machined-looking result most router jigs produce on show-face drawer sides.
Mechanically it is the most rigid design here. The one-piece aluminum extrusion base does not flex or twist, and it accepts boards up to 24 inches wide with pins up to 1-1/4 inches thick. On a tall chest of drawers where each front is wide, that combination is unusual.
Three carbide router bits are included, so you are not buying a bit set on top of the jig. If you build furniture where dovetail appearance matters more than throughput, the visual result is the reason to own one.
The rating distribution tells a more complicated story: 59 percent five-star, 17 percent four-star, but 13 percent three-star and 11 percent one-star. Owners who hit the sweet spot with alignment love it. Owners who did not describe setup and alignment as needing real care, and several felt the price was steep for the results they got.
Part of the spread is honest expectation setting. This is a dedicated bench fixture at 22.1 pounds that expects to be set up carefully and stay put. It is not a first-jig purchase for a beginner.
What you get for a drawer box
Half-blind dovetails between the sides and the front, plus through dovetails on the show-face sides when you want them. The wide flat pin geometry gives long glue surfaces, and on a solid hardwood chest the visual match to hand-cut work is the reason it earns its place.
The 24 inch board capacity also means a wide dresser drawer front stays in one pass, which you would otherwise not get from a 12 inch template.
Where it disappoints
The router and the cutting setup are additional cost on top of the jig itself, and that pushes the real entry point higher than the sticker suggests. Budget for a router, a bushing and the bits you will burn through hardwood.
At 22.1 pounds this is shop furniture. If you build drawers occasionally, the mass buys you accuracy you will not use. If you build them weekly, the rigidity is exactly what stops the base from twisting on a long cut.
7. Peachtree Dovetail Jig Master Deluxe – Best Track-Mounted Clamping
Dovetail Jig Master Deluxe System
Machined anodized aluminum template
Two 17 inch tracks and clamps
5/8 to 3/4 inch stock
7-degree bit plus flush trim bit
Pros
- Tracks and clamps keep the template registered to the workpiece
- Permanently scribed alignment lines that cannot wear off
- Includes both a 7-degree bit and a flush trim bit
- Light at 1.73 kg and compact
Cons
- Narrow 5/8 to 3/4 inch stock thickness window
- Needs a router setup and a mounting surface
- Limited joint styles versus full systems
The Peachtree system solves a specific problem: keeping the template aligned to the workpiece while the router passes. The two 17 inch aluminum tracks bolt down to your bench, the track clamps register the workpiece against them, and the template sits in the same position every time.
That repeatability is why it is worth a place here even though its stock thickness window is narrow. If your drawer sides are all the same material and thickness, which is what happens on a kitchen run, being locked to one setup is an advantage rather than a limitation.
The anodized aluminum template has permanently scribed alignment lines. Scribed means cut into the metal rather than printed on top, so the registration marks survive years of use. Several owners call that out specifically after comparing it with printed marks on other jigs.
The kit includes two 17 inch tracks, two track clamps, a 7-degree dovetail bit and a flush trim bit. The flush trim bit matters more than it sounds: it cleans up squeeze-out at the base of a dovetail on a solid drawer side before you glue up.

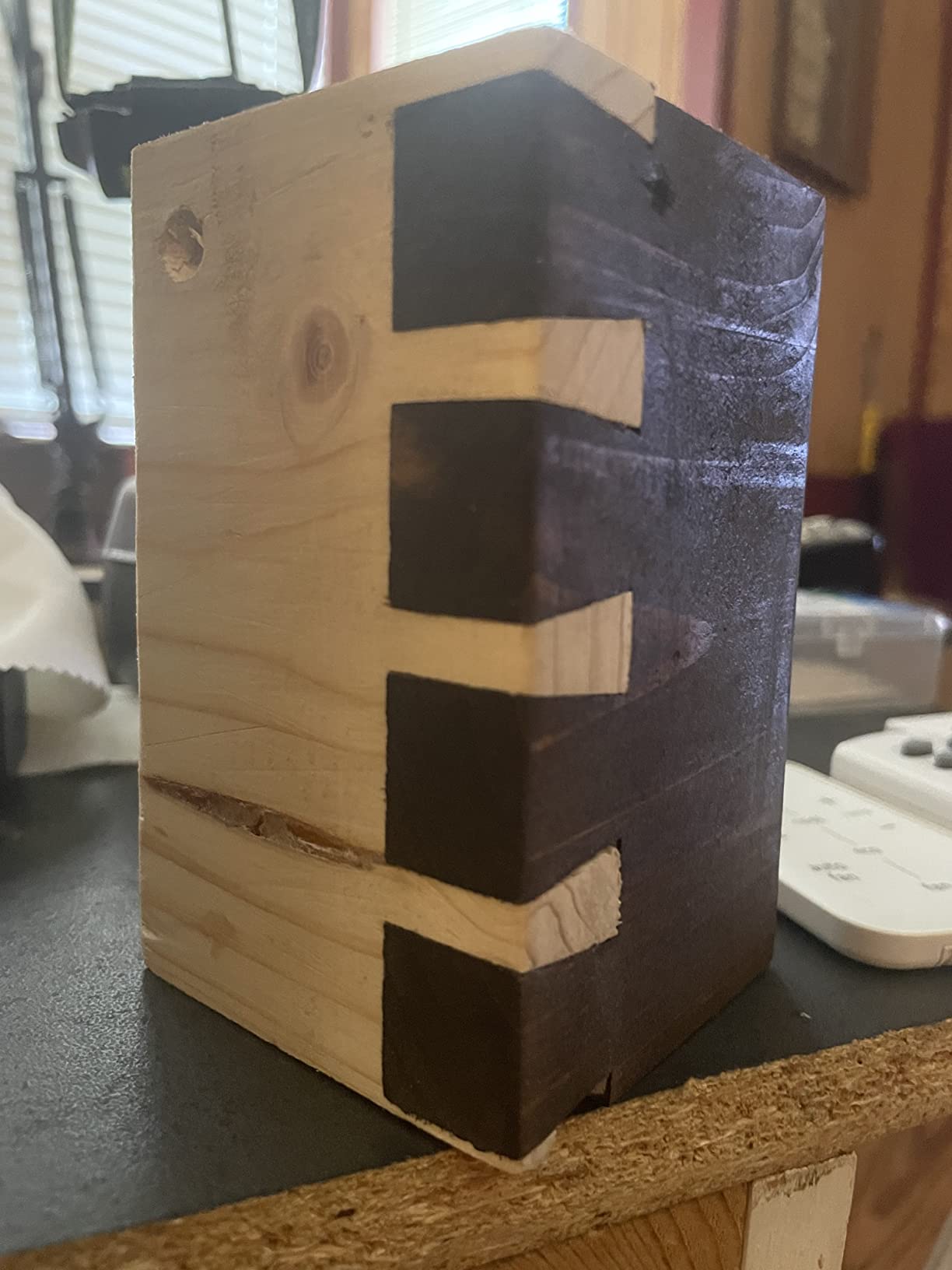

The spear point pin style is the visual signature. It gives a sharp-looking pin that reads well on a show-face drawer and works with the flush trim pass. At 1.73 kg the whole system is light and much less expensive than a router-table jig, which makes it a reasonable middle step.
The 68 percent five-star and 17 percent four-star distribution is solid, with a 7 percent three-star cluster that mostly reflects people who tried it with stock thinner than the specified range.
What you get for a drawer box

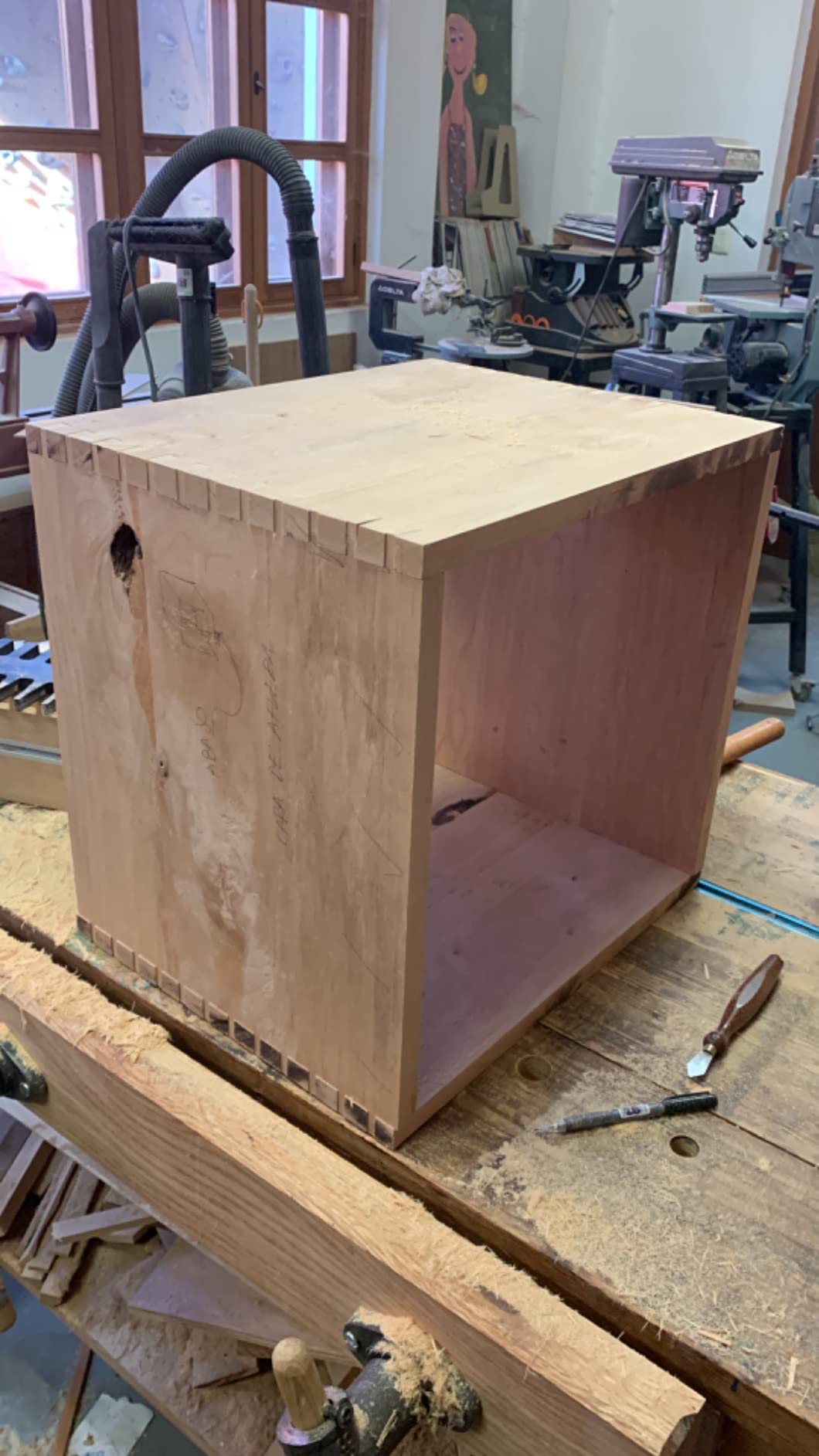

Half-blind dovetails at the front and back, and through dovetails on show-face sides if you want the spear points visible. With stock between roughly 5/8 and 3/4 inch, that maps directly onto solid hardwood drawer stock for a dresser or chest.
The 17 inch tracks give a comfortable working length for drawer sides of most widths, and the clamp system means you are not holding the workpiece with one hand while routing with the other.
Where it disappoints
The 5/8 to 3/4 inch window is the most commonly noted limitation, and it is a hard one. Half-inch plywood drawer sides are outside the range, so if your project is a kitchen cabinet run in ply, this jig simply does not fit.
You also need somewhere to mount the tracks. In a small shop or a portable setup that means an extra step every session, and the joint styles on offer are narrower than a full multi-template system.
8. Woodstock D2796 Dovetail Jig – Best Simple Half-Blind Setup
Woodstock D2796 – Dovetail Jig w/Aluminum Template
12 inch jig with aluminum template
Cuts 1/2 inch half-blind dovetails
Adjustable router tail stop
Steel and aluminum body
Pros
- Focused on the half-blind joint drawers actually need
- Heavy rigid body stays put once mounted
- Straightforward setup for a first jig
- Makes 1/2 inch half-blind dovetails
Cons
- Bit and 7/16 inch bushing sold separately
- Recurring reports of plastic cam knobs failing
- Side stops reported drifting out of square

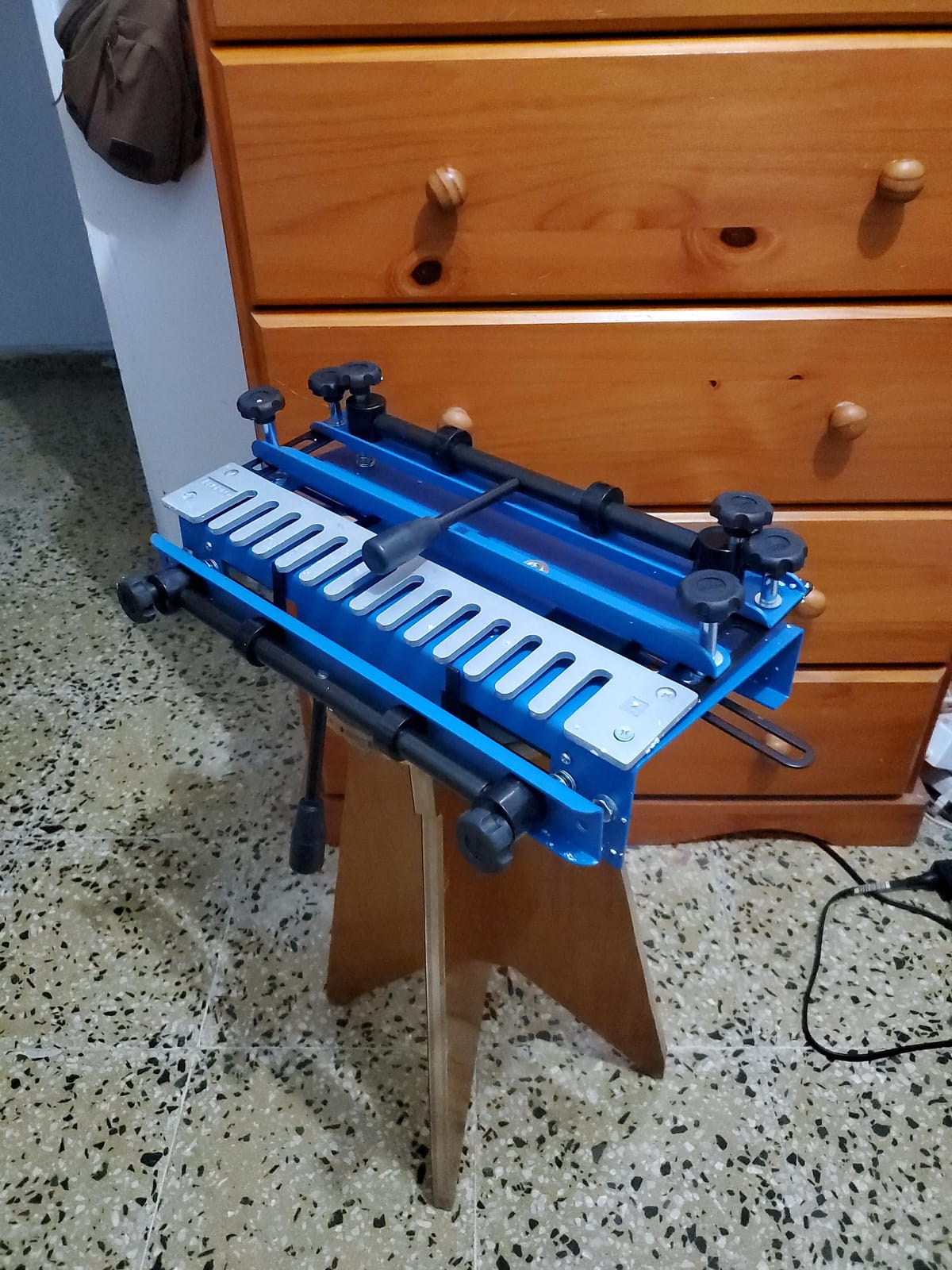

The D2796 does one job: it makes half-inch half-blind dovetails, which is the joint that joins a drawer front to its sides. If that is the only joint in your project list, a jig with fewer features and fewer settings is a defensible choice.
The body is alloy steel and aluminum at 7.76 kg. Once you mount it to the bench it stays there, which is what you want during a batch of sixteen drawer sides. The adjustable tail stop sets the router depth for the half-blind, and the 1/2 inch aluminum template defines the pin spacing.
Owners who file the T-nuts and re-tighten the plastic knobs report good half-blind joints afterwards. That sentence is the honest summary of this jig: the design works, the quality control on small parts does not always.
It is the lowest-rated jig in this group at 3.8, with 14 percent one-star reviews. The most repeated complaint across those reviews is the same cam knob and T-nut problem, and the second most repeated is that the side stops do not stay square once you have moved them a few times.

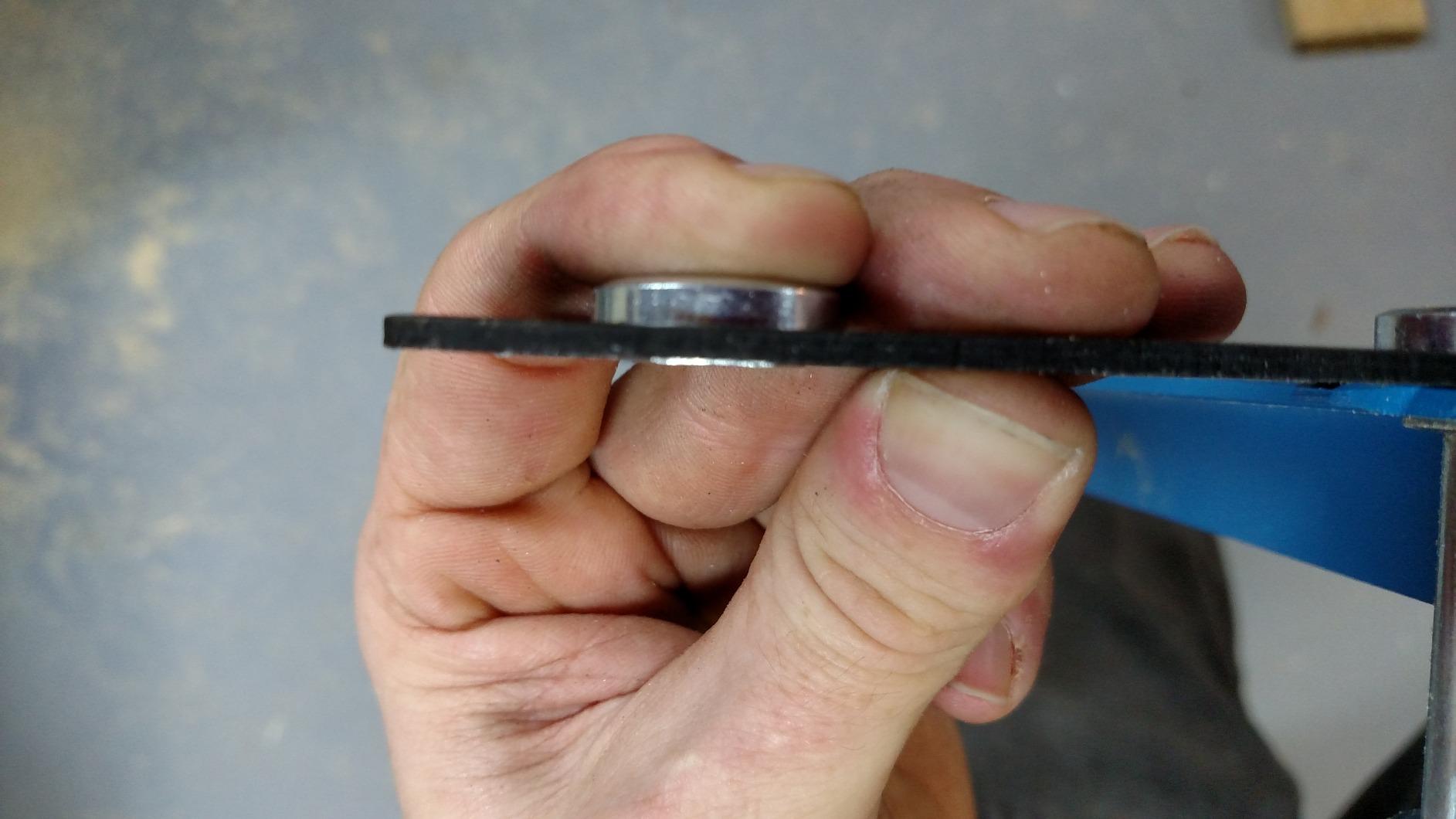

It also requires a separate purchase to run: a 7/16 inch guide bushing and a half-inch 14-degree dovetail bit with a half-inch shank. The manual is reported as poorly organised, and setup tends to need tweaking per project.
What you get for a drawer box
Half-inch half-blind dovetails, which is the joint between a drawer front and a drawer side and between the sides and the back. For a simple four-sided box in solid stock, that is the entire joinery.
The 12 inch footprint covers most residential drawer widths, and the focused design means fewer adjustments between a small box and a large one.
Where it disappoints
It is a single-template jig, so through dovetails on a show face and box joints for the drawer bottom are not part of the package. Budget for the bushing and the bit before you start.
The hardware complaints are real and recurring rather than anecdotal. If you buy it, inspect the cam knobs and T-nuts on arrival and expect to re-tighten them as you use it. Square the side stops fresh for every new joint width.
How to Choose a Dovetail Jig for Drawer Boxes
Match the joint to its place on the drawer
A drawer box is four boards, and each seam wants a different joint. The two sides meeting the drawer front and back take half-blind dovetails, because a through tail on that seam would show on the drawer face. The show-face side, if you want one, takes through dovetails. The drawer bottom takes a groove, a rabbet or a box joint depending on whether it is captured or screwed in.
Most residential drawer boxes are 12 to 16 inches wide at the sides, so a 12 inch template covers the great majority of them. When a template is shorter than the board you are cutting, you must reposition mid-joint, and every reposition is a chance to shift the reference edge.
Budget half-blind depth against drawer front thickness
This is the number most buyers get wrong. A half-blind dovetail still removes material from the face of the joint. The half-blind depth has to fit inside the thinnest board in the seam, which for a drawer is normally the front or the back panel.
If your drawer front is three-quarter inch solid stock and the jig cuts a three-eighth inch half-blind depth, you have half of that thickness left standing proud of the pin. If the front is a half-inch panel, a three-eighth inch half-blind leaves only an eighth inch, which is too fragile to clamp and hard to glue. Check the depth against the thinnest board before you cut, not after.
Fixed or variable spacing, and the width limitation
A fixed-spacing template has machined finger positions. It always produces the same pin width, which is repeatable and accurate, but it means only certain board widths give you a traditional half-pin at the end of the board. If your drawer side width does not land on a valid position, you get a partial pin or a gap at the corner.
Variable-spacing jigs let you set the spacing for any width, which solves the sizing problem and creates a new one: every joint can be slightly different unless you mark and reset carefully. For a batch of identical drawers, fixed spacing with a width you have chosen to suit the jig is usually the faster path.
Handheld router or router table
A handheld router with a 1/2-inch collet and roughly 1.5 to 2 horsepower handles every jig in this roundup except the RTJ400. It is the flexible choice, and the bushing in the router is what makes joint fit consistent regardless of bit wear.
A router table jig keeps the work moving past a fixed bit instead. You are trading setup freedom for repeatability, and if you are cutting a run of identical kitchen drawer boxes the repeatability wins. The cost is a bigger shop investment and the counterbore insert requirement.
Router and collet requirements
Almost every jig here needs a router that was not included. Plan on a 1/2-inch collet, an eccentric or elliptical guide bushing where the jig relies on one, and a spare set of dovetail bits in the size you are cutting. Entry-level kits include one bit, and that bit dulls in hardwood faster than most beginners expect.
Template material and what wears first
Aluminum is the default because it machines accurately and does not rust. Steel bodies like the CDJ600 and the D2796 resist flex better but weigh more. Phenolic and wood templates are cheap and easy to shape, and they wear at the reference edges under heavy use.
Whatever the body, the first things to fail are small: plastic pin guides, cam knobs and T-nuts. Check them when the jig arrives, because most negative reviews on otherwise sound designs trace back to one moulding part rather than the machining.
Frequently Asked Questions
What is the best dovetail jig on the market?
The PORTER-CABLE 4216 is the best overall dovetail jig because three interchangeable templates cover half-blind, rabbeted half-blind, through and miniature dovetails plus box joints in one 12 inch kit. Its template alignment lines and router bit depth gauges make first-joint setup fast.
What is the best router dovetail jig for drawers?
The Leigh RTJ400 is the best router table dovetail jig. One template cuts through, half-blind, half-pitch and angled dovetails, end-to-end splices and box joints, while the sliding design keeps the workpiece clamped and repeatability high across a batch of identical drawer boxes.
What type of wood is best for dovetail drawer boxes?
For drawer boxes, half-inch birch plywood is the most practical choice because it is stable, dimensionally consistent and the jig template windows usually include it. Solid hardwood such as maple or walnut suits show-face sides and takes pins up to 1-1/4 inch thick on a wide-capability jig. Match your stock thickness to the jig range before buying.
What are common dovetail mistakes when building drawers?
The most common mistakes are routing with the bit protruding more than the jig specifies, letting the workpiece shift after the first pass, and forgetting to support the workpiece so router pressure pulls it out of registration. Others include cutting a half-blind depth deeper than the thinnest board in the seam, moving the router to a new collet position mid-project so pin geometry shifts, and skipping a dry-fit to check fit before glue-up.
How do I choose a dovetail jig for drawers?
Choose on three numbers: the maximum board width, the maximum stock thickness, and the half-blind depth. Your jig must be wider than your widest drawer side, thick enough for your stock, and cut a half-blind depth that fits inside your thinnest drawer panel. Then decide between a handheld router jig for flexibility and a router table jig for batch repeatability.
Final Verdict: The Best Dovetail Jigs for Drawers
The PORTER-CABLE 4216 is the best dovetail jig for drawers because a drawer box needs more than one joint type and it is the only kit here that covers half-blind, through, miniature and box joints with the bits already in the box. Three templates, a 12 inch base that fits nearly every residential drawer width, and depth gauges that make your first joint a quick one.
Buy the General Tools 861 if the budget is the deciding factor and the router bit in the box is worth more to you than template features. Buy the Keller 135-1500 Journeyman if your drawer stock varies in thickness, because it accepts 1/8 to 3/4 inch material and unlimited width.
Move up to the Leigh RTJ400 when you are cutting a run of identical kitchen drawer boxes and own a compatible router table, or to the Leigh D4R Pro when you want hand-cut-style flat pins on a wide solid hardwood chest. Before any of them, measure your widest drawer side and your thinnest panel, and check both against the jig specifications.
